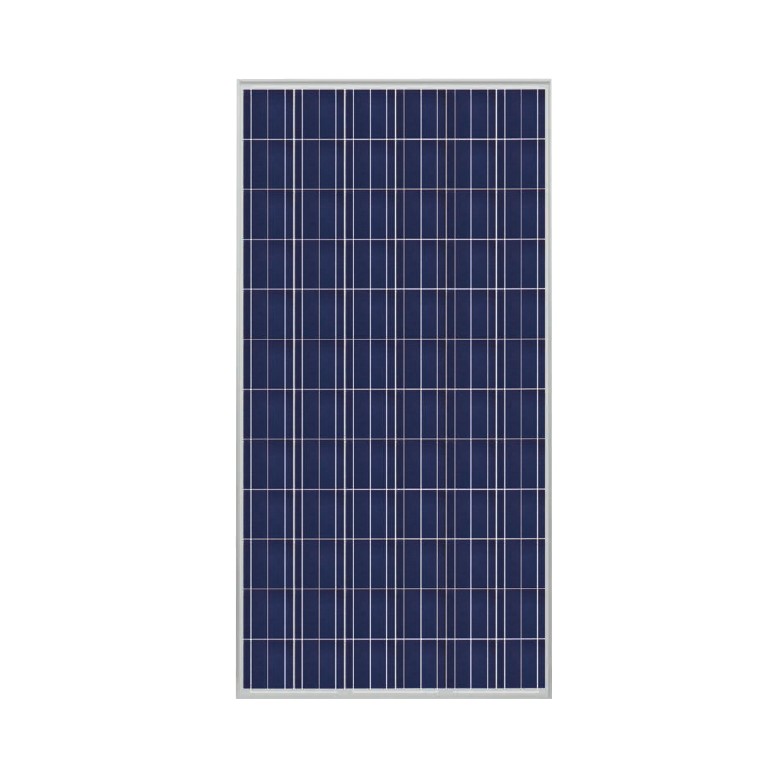

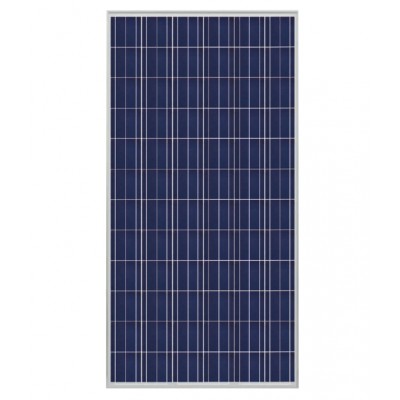

TSM-285 PC/PA14

TSM-285 PC/PA14
Multi Series, from 230-310W, Trina Solar's multicrystalline series include the most popular, vertical and adaptable panels for large-scale installations.

More details

€ 0.00 tax excl.

Availability: This product is no longer in stock

Download

The NEW TSM-PC14 is the newest addition to Trina Solar’s premium portfolio of multicrystalline modules. With power outputs ranging from 270 to 290 Watt, the modules are designed specially for utility-scale installations. Along with the rest of Trina Solar’s module portfolios, the PC14 provides the highest Quality and power output to our utility-scale customers.

Module can bear snow loads up to 5400Pa and wind loads up to 2400Pa.
Guaranteed power output (0~+3%).
High performance under low light conditions (cloudy days, mornings and evenings).
Enhanced module durability with 4.0mm thick tempered glass.
Independently certified by international certification bodies.
Manufactured according to International Quality and Environment Management System (ISO9001, ISO14001).

Efficiency:   14.7%.
Wattage:   285W.
Years warranty: 25.
Solar cells: Multicrystalline 156 x 156mm (6 inches).
Cells orientation: 72 cells (6x12).
Module dimension: 1956 x 992 x 46mm (77 x 39.05 x 1.81 inches).
Weight: 28kg (61.7lb).
Glass: High transparency solar glass 4.0mm (0.16 inches).
Frame: Anodized aluminum alloy.
J-Box: IP 65 rated.
Cables/connectors: Photovoltaic technology cable 4.0mm2 (0.006 inches2), 1250mm (49.2 inches), MC4.
