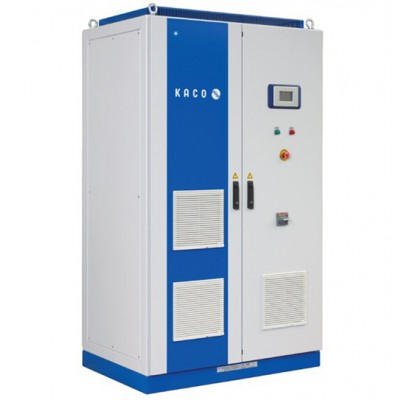

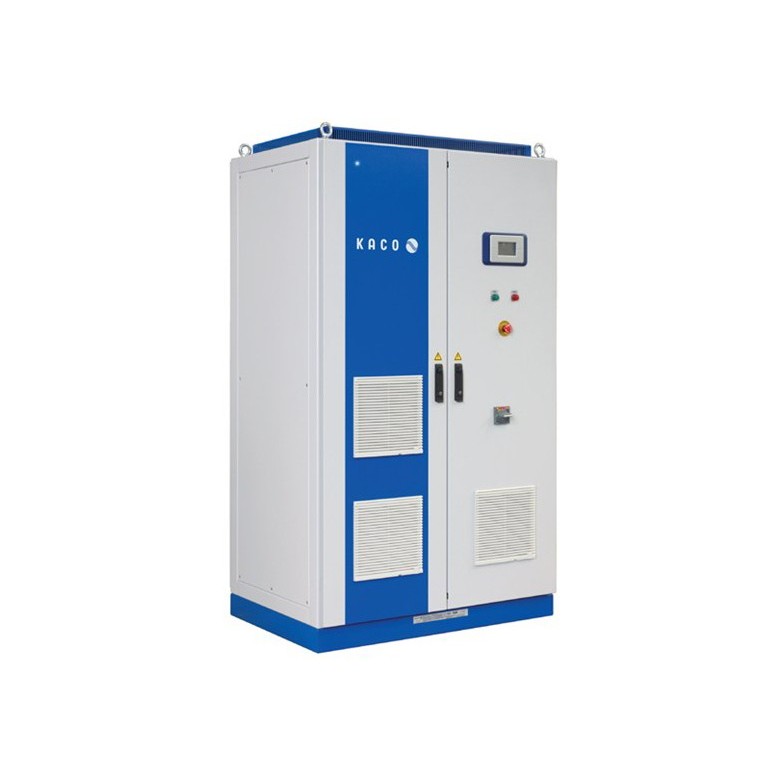

Powador XP100-HV

Powador XP100-HV
Powador XP100-HV with a rated AC power of 100 kVA. Suitable as a single unit for PV installations with a generator power of up to 120 kW.

More details

€ 0.00 tax excl.

Availability: This product is no longer in stock

Input Variables
Max. recommended PV generator power 120 kW
MPP range 450 V … 830 V
No-load voltage 1,000 V*
Max. input current 245 A
Ripple voltage < 3%
Ripple current < 4%
Output Variables
Rated output 100 kVA
Line voltage 400 V (+/- 10%)
Rated current 153 A
Rated frequency 50 Hz / 60 Hz
cos phi 0.80 inductive ... 0.80 capacitive
Distortion factor for rated output < 3 % at rated output power
General Electrical Data
Max. efficiency 97.1%
European efficiency 96.5%
Internal consumption < 1% of the rated power
Standby consumption < 40 W
Grid monitoring acc. to local requirements
Auxiliary supply 230 V

Mechanical Data

Display TFT LCD Touchscreen
Interfaces RS485 / Ethernet / USB, 4 x analog inputs, 1 x digital input, 1 x S0 input, 1 x digital output, 1 x S0 output, SD card
Ambient temperature -20 °C … +50 °C full rated power, no derating
Cooling fan (max. 5240 m³/h)
Protection class IP21
Noise emission < 70 dB (A)
EMC acc. EN 61000-6-2 / EN 61000-6-4
CE conformity yes
H x W x D 2,120 x 1,200 x 920 mm
Weight 1,150 kg
